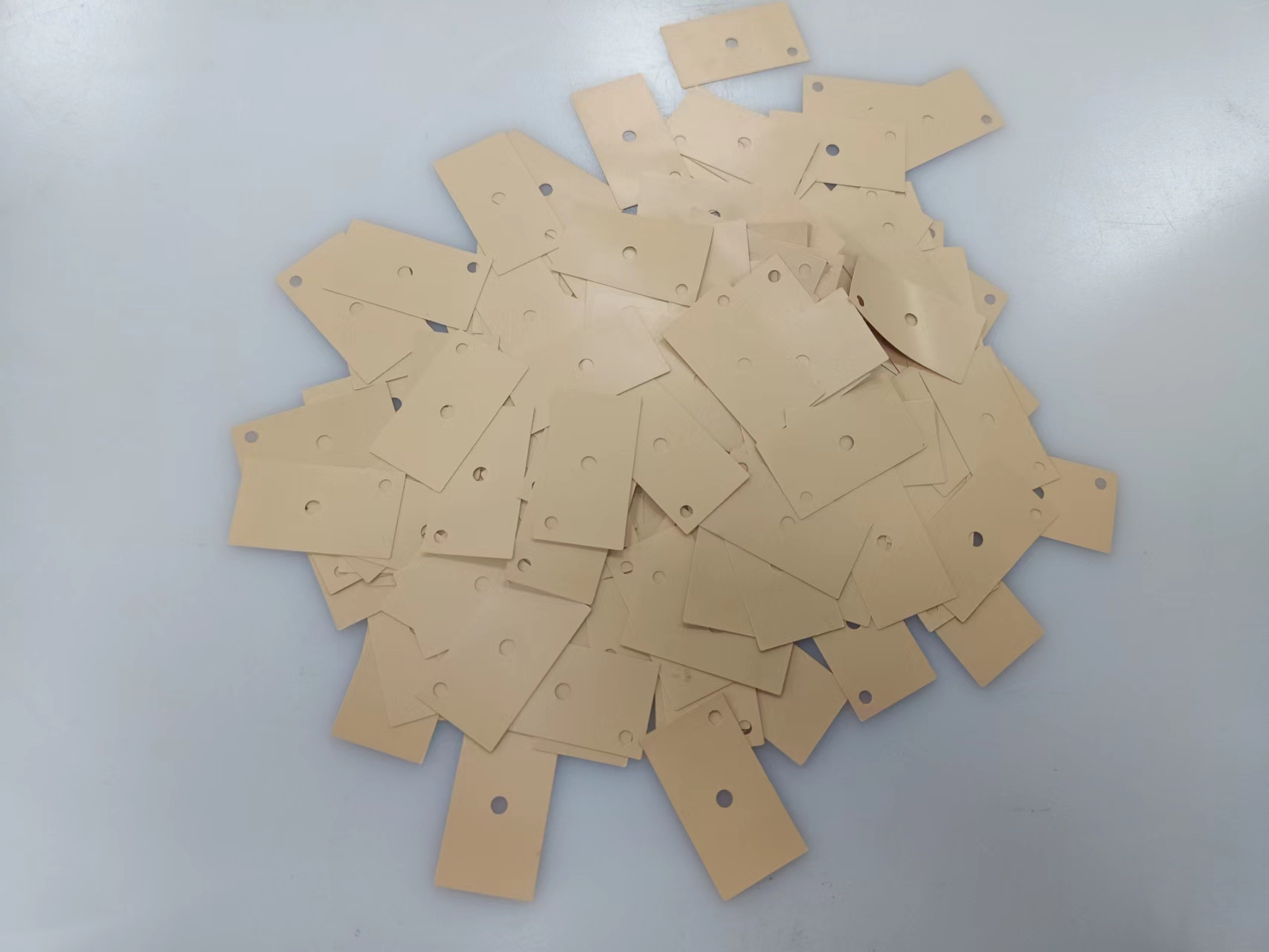

Sil-Pad K-10 is a high-performance elastomer insulating material based on a special film, with excellent cutting resistance and excellent thermal conductivity. As an alternative to beryllium oxide, boron nitride, and other types of ceramic insulators, which are very expensive and prone to damage, Sil-Pad K10 is less prone to damage and less expensive.
| Attribute | Test method | Unit | K-10 Test value |
| 顏色Color | Visual | Yellow | |
| 厚度 Thickness | ASTM D374 | mm | 0.15mm |
| 比重 Specific Gravity | ASTM D792 | g/cm3 | 1.7±0.1 |
| 硬度 Hardness | ASTM D2240 | Shore C | 75±5 |
| 抗拉強度 Tensile Strength | ASTM D412 | MPa | 5000 |
| 壓縮率 Compression Ratio | ASTM D412 | % | 40 |
| 耐溫范圍 Continuous use Temp | EN344 | ℃ | -50~200 |
| 體積電阻 Volume Resistivitv | ASTM D257 | Ω-CM | 1012 |
| 耐電壓 Breakdown Voltage | ASTM D149 | KV/mm | ≥6 |
| 阻燃性 Flame Rating | UL-94 | V-0 | |
| 導熱系數(shù) Conductivity | ASTM D5470 | w/m-k | 1.3 |

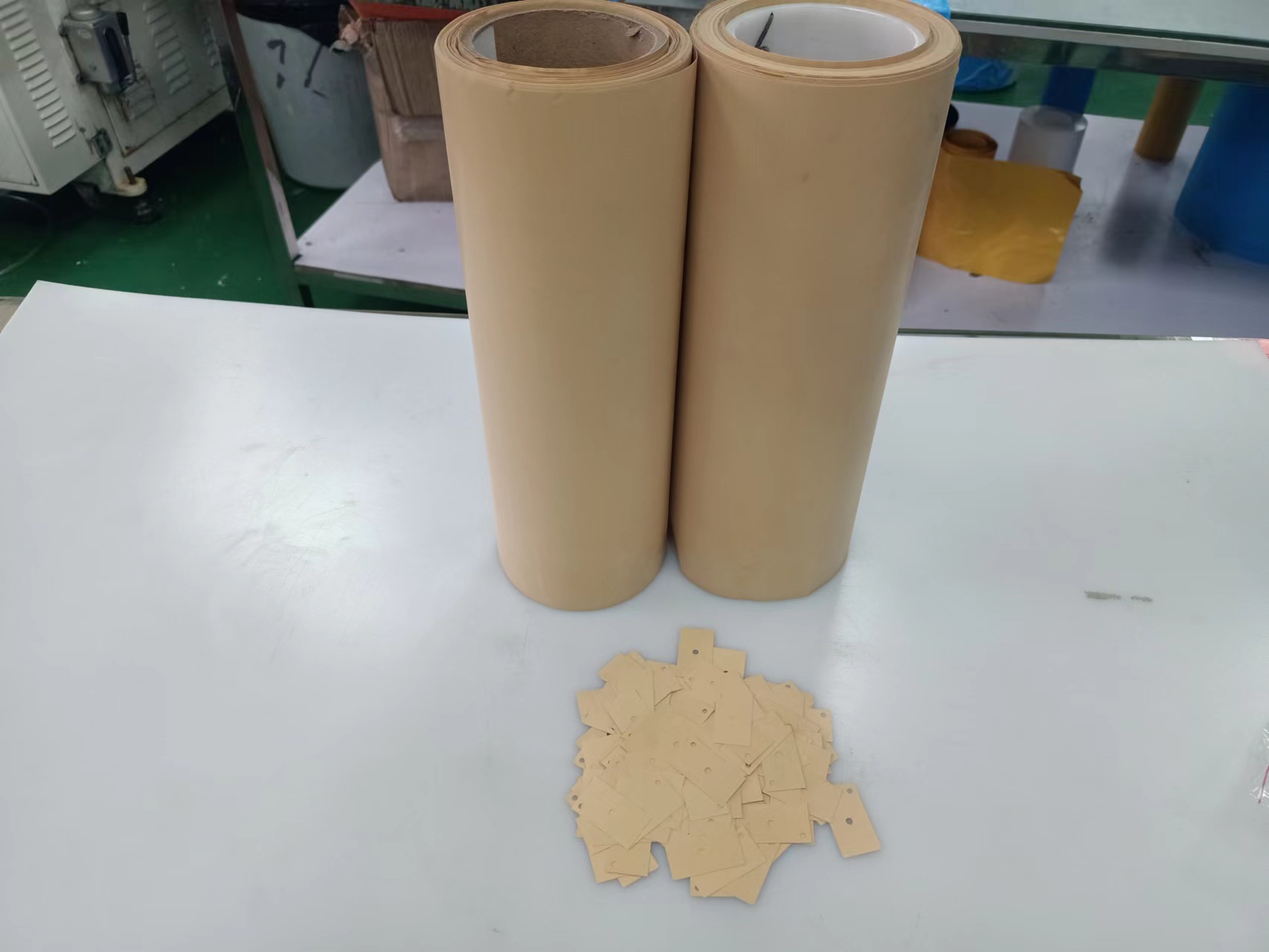

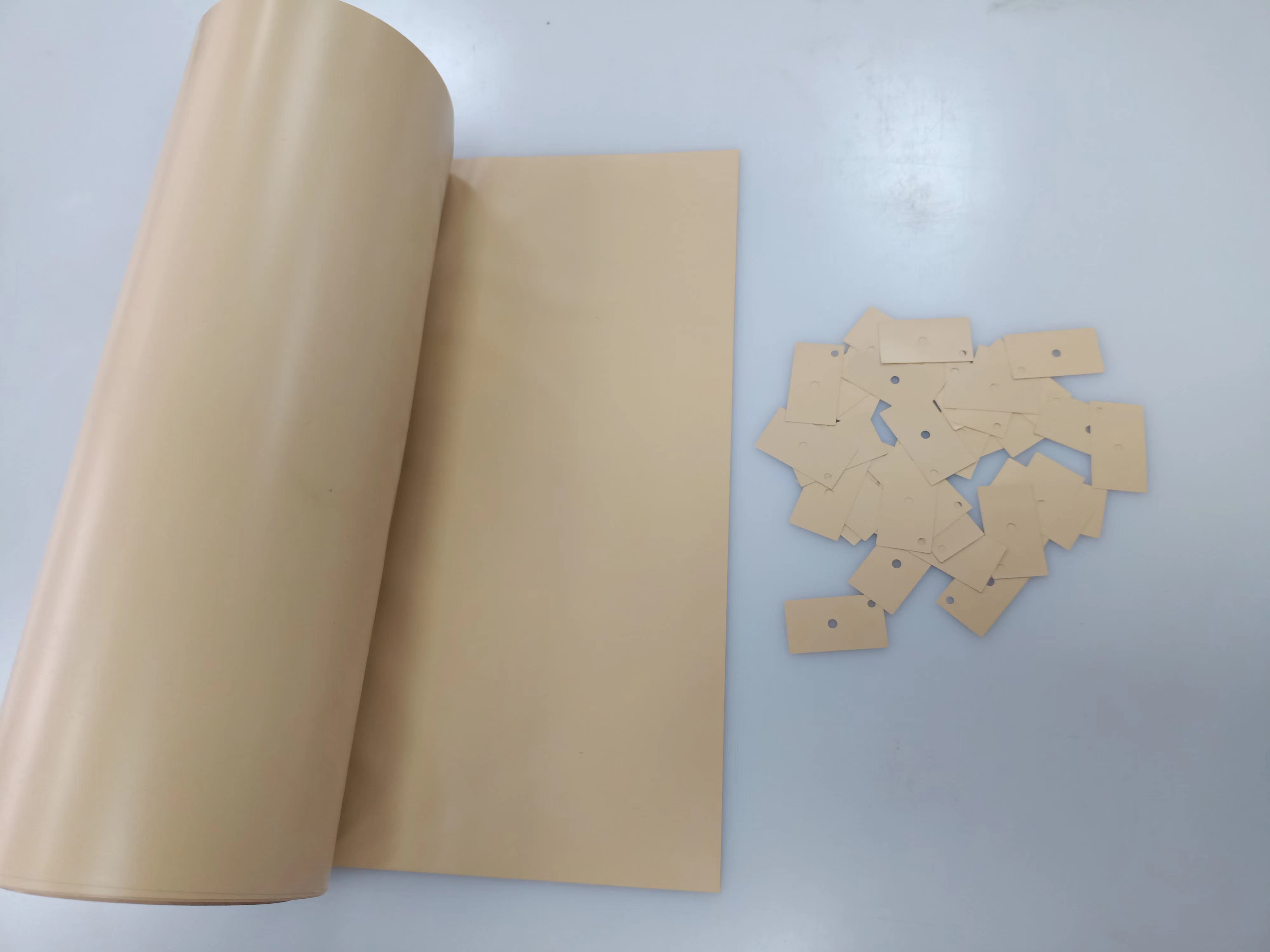

Common specifications 300MM*50M
Typical applications are in power supply, motor control, power semiconductor, military and other industries.
