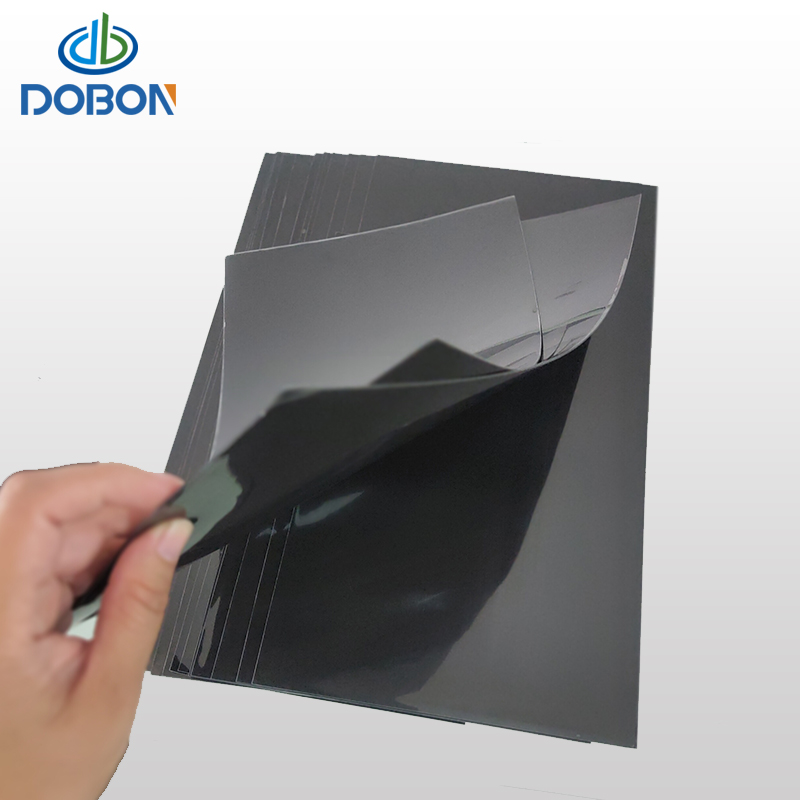

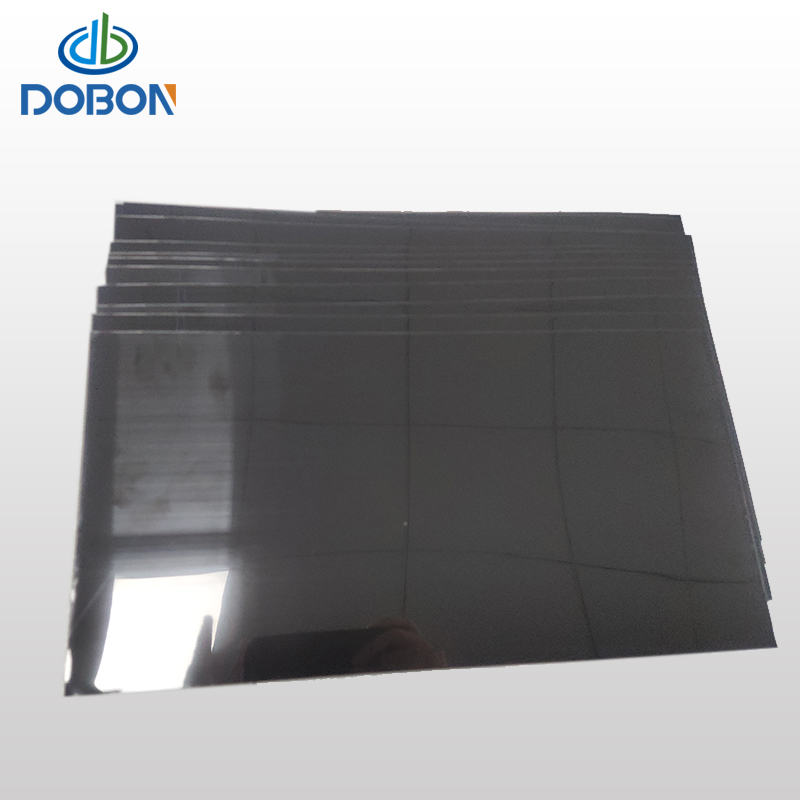

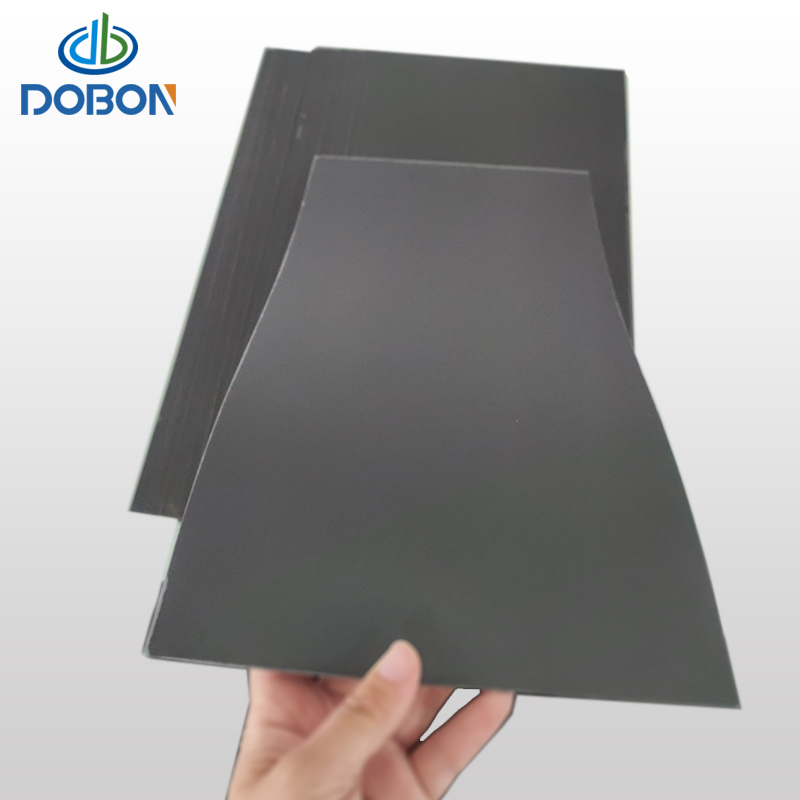

CPR wear--resistant thermal conductive silicone pad is a kind of heat-conducting material with high tensile strength, which has high tensile strength, good tensile strength, wear resistance and anti-seismic resistance. This material is made into coiled materials of different thickness, which is easy to be die-cut and processed into the required size. One side of the wear-resistant heat-conducting sheet can be used for frosting, anti-sliding and dustproof, and can be used to act as heat-conducting interface materials between frequently disassembled interfaces.
Product features:
1. Wear-resistant, supports multiple disassembly and reuse
2. Excellent thermal conductivity and insulation performance
3. Can make a frosted anti-skid dustproof side
4. The material has high tensile strength, can be folded without deformation, and has good assembly performance.
Test Item  | Test Method  | Unit  | CPR100Value  |
Color  | Visual  | Matte black  | |
Thickness  | ASTM D374  | mm  | 0.3~1.5mm  |
Specific Gravity  | ASTM D792  | g/cc  | 2.15±0.1  |
Hardness  | ASTM D2240  | Shore C  | 70  |
Tensile Strength  | ASTM D412  | (Mpa)  | <2.0  |
Elongation at break  | ASTM D412  | %  | <100  |
Temperature Range  | EN344  | ℃  | -40~150  |
Volume Resistivity  | ASTM D257  | Ω-CM  | 1.0*1014  |
Breakdown Voltage  | ASTM D149  | KV/mm  | ≥10  |
Flame Rating  | UL-94  | V-0  | |
Dielectric constant  | ASTM D150  | @1MHz  | 4.3  |
Thermal Conductivity  | ASTM D5470  | w/m-k  | 1.0  |
